Welcome to our short guide on adjusting door representations in cadvilla. In this brief overview, you will learn how to display open doors within your architectural 2D and 3D views. Furthermore, we explain where to find the specific settings required to modify these visual door states. Consequently, utilizing this display option will add a higher level of realism and detail to your 3D presentation models.

Configuring the Door Representation

Available from Version 8

• Starting from cadvilla version 8, you can configure a door to be displayed graphically as open within your 3D view.
• Therefore, this specific adjustment is made directly inside the door dialog for the respective door element.

Accessing the Settings

• First, select the target door in your project and open its properties.

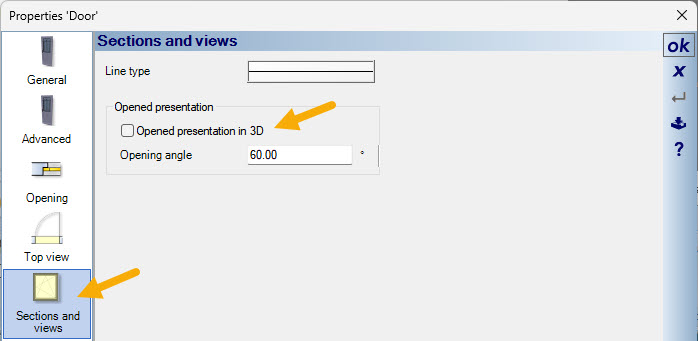

• Afterward, navigate through the door dialog to locate the specific settings for the 3D representation and define the desired open state.
